AmigaOne G3-SE
G3 PPC Processor @ 600Mhz
Max of 2GB memory
- Memory type is DIMM Registered 133
Standard IDE headers
- Up to 4 IDE devices
Northbridge
- Articia 'S' with fix
- This is the interface between the CPU, memory and PCI bus
Southbridge
- VIA 82C686B
- The chip that handles the system timing, interrupts,
- communication between functions such as IDE, USB etc...
1 AGP Slot
- 2x speed
4 PCI slots
- 3 x PCI 33MHz
- 1 x PCI 66MHz
10/100 Ethernet chip & socket installed
- 3COM 920C
USB ports
- 2 mounted on the back plate of the system
- 2 headers are mounted on the motherboard
PS2 ports
- For standard PS2 keyboard + mouse
Serial ports
- 2 x 16650 equivalent
Parallel port
- 1 x EPP/ECP
IRDA port
- Header on the mother board
Firmware
- PPCBoot and AmigaOS4 enabler
OS capability
- AmigaOS4
- (Suse) LinuxPPC
- MacOS (Using MOL, emulation through Linux)
|
|
|
|
|
|
|
AmigaOne XE
ATX form factor (305x244 mm)
G4 or G3 PPC Processor @ 800Mhz some G4's are 933Mhz, depends on dealer.
- The CPU is upgradeable since it is socketed in this model of the A1
Max of 2GB memory
- Memory type is DIMM Registered 133
Standard IDE headers
- Up to 4 IDE devices
Northbridge
- Articia 'S' with fix
- This is the interface between the CPU, memory and PCI bus
Southbridge
- VIA 82C686B
- The chip that handles the system timing, interrupts,
- communication between functions such as IDE, USB etc...
1 AGP Slot
- 2x speed
4 PCI slots
- 3 x PCI 33MHz
- 1 x PCI 66MHz
10/100 Ethernet chip & socket installed
- 3COM 920C
USB ports
- 2 mounted on the back plate of the system
- 2 headers are mounted on the mother board
PS2 ports
- For standard PS2 keyboard + mouse
Serial ports
- 2 x 16650 equivalent
Parallel port
- 1 x EPP/ECP
IRDA port
- Header on the mother board
Firmware
- PPCBoot & AmigaOS4 enabler
OS capability
- AmigaOS4
- (Suse) LinuxPPC
- MacOS (Using MOL, emulation through Linux)
|
|
|
|
|
|
|

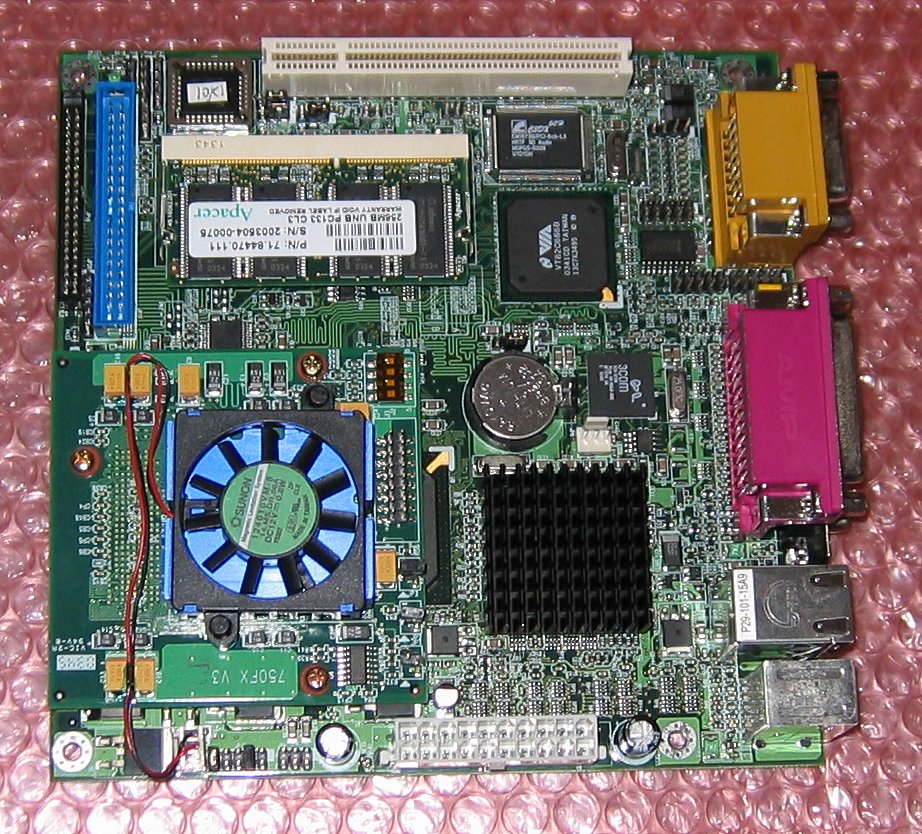

Micro AmigaOne
CPU
- The ľA1-C, just like the XE systems has a MagArray 300 connector for PPC processors made by IBM and Motorola and will handle G3/G4 CPU's up to their current clocking limits
Memory
- PC133MHz SODIMM slot.can take up to 2GB.
Legacy Peripherals
- Parallel 1x EPP/ECP,
- 2x Serial (on internal headers)
- JoyStick/Midi port
- PS2 kb and PS2 mouse ports.
Integrated Peripherals
- 2x 1.1 USB on the motherboard rear ITX I/O panel)
- 2 more on headers (using a front bay connecter)
- Ethernet: 10/100 with 3COM 920C controller
- Sound: Cmedia CMI8738 6 ch controller with 3.5mm mic, aux and speaker jacks
- UDMA 100 2 channel interface (VIA686B)
1 44 way (2.5" IDE)
1 40 way (Standard IDE)
PCI
- One PCI slot on board.
- With a suitable riser card you can add upto 3 PCI slots
Graphics interface speed
- ATI Radeon 7000 AGP graphics controller on board with VGA, S-Video and composite output with 32MB of non-shared memory.
BIOS
- Uboot socketed, with OS4 enabling code
The chipsets which are used on the A1-XE are also on the mA1 including the
- North Bridge- Articia "S"
which is the bridge board between the CPU, memory and PCI bus
- South Bridge- VIA 82C686B,
the chip that handles the system timing, interrupts, and communications between functions
|
|
|
|
|
|
